MD SINGLE ESSENTIA

Integrable metal detector

Metal detectors are a commonly used detection method for metal contaminants within factories. The metal detector will check the product for metal contamination as it is transported through the
production line, diverting it if a contaminant is found.

Varpe’s MD SINGLE ESSENTIA metal detector head features a uniquely designed frame and spiral geometry for automatic product identification and maximum sensitivity without the need for adjustment. The highfrequency signals can be selected depending on the properties of the product to be inspected, so that the metal detector offers optimum performance in the detection of different products. It offers numerous features, such as self-diagnosis, storage of detection history, optional printer, Ethernet port connection, USB disk connection, various rejection systems, among
others.

Technical specifications
Manufacturing material
Stainless steel
Frecuency
Multifrecuency
Screen
LCD-LED touch colour 7”
Protection
IP66
Voltage
Single-phase (110 to 220 V)
Three-phase (220 to 380 V)

Working temperature
0-50 ºC
Humidity
0-95% hr (non-condensed)

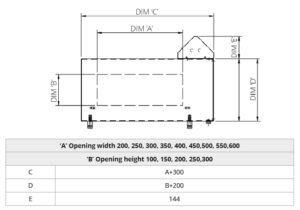

Maximum product dimensions According to customer needs
Included elements
SELF-LEARNING
Product self-learning for
production optimisation

SOFTWARE
Intuitive and easy-to-use
human-machine interface

USERS
User and access control
with three-level passwords
SECURITY
Data integrity security
and automatic backups
REJECT INFORMATION
Consultation, export and
analysis of rejections
LANGUAGES
Language selection
MULTIFRECUENCY
Multi-frequency
operation for increased
sensitivity
OPENING SIZES
Full range of opening sizes
to suit inspected products
PRODUCT MEMORIES
Multiple product memories
for quick product
changeover and data
storage
Conveyor accessories and complements
GUIDES
Adjustable side
guides and top
guides

PROTECTIONS
Protections for
product and operator
passage integrity

ALARM AND BEACONS
Light and/or
acoustic beacon
and alarms

DEFEAT DEVICES
Pushers, blowers,
turnouts, tilting,
progressive, retractable,
etc.
COLLECT
Collection system
for rejected
products
SENSORS
Sensors adapted to
the product
ADAPTATION
Different sizes of
working height,
inspection area,
conveyor belts and
rejection are possible
HYGIENIC DESING
Hygienic design based
on EHEDG concepts
SLOPING PLANE
Adapted design
for inclined lines
Communications, controls and technologies
DIGITAL SIGNALS
USB port connector
USB
Ethernet connection
CONNECTIONS
Ethernet connections
MAINS VOLTAGE
Customised
electrical voltages
at 50/60 Hz
SPEED
Automatic speed
variation
CONFIRMATION
Confirmation of correct
or rejected products
(full confirmation), M&S
process
ACUMULATION
Reject accumulation
detection system

DOWNLOAD DATASHEET

Complete the form to download datasheet.
