MD PHARMA ESSENTIA

Metal detector for Pharmaceutical industry

The pharmaceutical grade metal detector is the most sensitive system among the products in the metal detector range. Offering unrivalled accuracy in the detection of metal contaminants in pharmaceutical products, they can detect and reject microscopic particles on pharmaceutical production lines at speeds of up to 15,000 units per minute. Even in difficult applications, our innovative technology continues to deliver exceptional performance.

Robustly designed, it is easy to install due to its compact size with AISI 316 stainless steel conduit and a clear PVC diverter-type reject system. Specifically designed to inspect tablets, capsules, pills, etc. typical of the pharmaceutical sector, offering the highest levels of inspection sensitivity.

Minimal installation space required. Installation in restricted vertical packaging spaces. Unrivalled detection sensitivity. The use of high frequency technology offers the highest levels of sensitivity in all types of metals.

Technical specifications
Manufacturing material Stainless steel
Frecuency Multifrecuency
Screen
LCD-LED touch colour 7”
Protection
IP66
Voltage
Single-phase (110 a 220 V)
Three-phase (220 a 380 V)

Operating temperature
0-50 ºC
Humidity
0-95% hr (non- condensed)

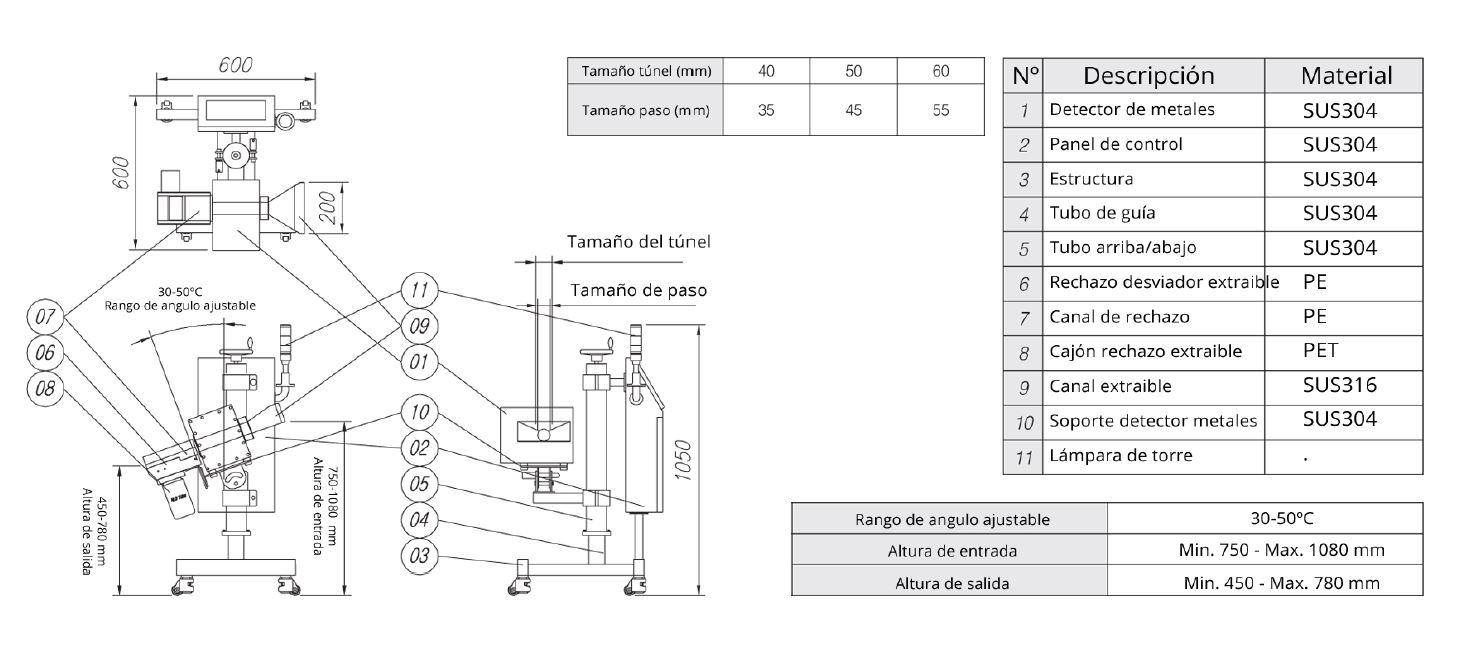

Overall product dimensions According to customer needs
Included elements
SELF-LEARNING
Product self-learning for
production optimization

SOFTWARE
Intuitive and userfriendly
humanmachine
interface
USERS
Advanced user control
and three-level
password access
SECURITY
Data integrity security
and automatic backups
REJECTION INFORMATION
Consultation, export and
analysis of rejections
LANGUAGES
Selecion of lenguages
MULTIFRECUENCY
Multi-frequency
operation for increased
sensitivity
APERTURE SIZES
Full range of opening
sizes to suit inspected
products
PRODUCT MEMORY
Multiple product memories
for quick product
changeover and data
storage
Conveyor accessories and complements
GUIDES
Adjustable side
and top guides

PROTECTIONS
Protections for
product and operator
passage integrity
ALARMS AND BEACONS
Light and/or
acoustic beacon
and alarms
REJECTION DEVICES
Pushers, blowers,
turnouts, tilting,
progressive, retractable,
etc
COLLECT
Collection system
for rejected
products
SENSORS
Sensors adapted to
the product
ADAPTATION
Different sizes of
working height,
inspection area,
conveyor belts and
rejection are possible
HYGIENIC DESIGN
Hygienic design based
on EHEDG concepts
INCLINED PLANE
Adapted design
for inclined lines
Communications, controls and technologies
DIGITAL SIGNALS
USB port connection
USB
Data connection ports RS232C and 485
CONNECTIONS
Digital signal process (32 bits’ micro-processor)
MAINS VOLTAGE
Security system (3 levels password)
SPEED
Automatic speed
variation
CONFIRMATION
Confirmación de los
productos correctos o
rechazados (confirmación
completa), proceso M&S
ACCUMULATION
Accumulation
detection system
de productos

DOWNLOAD DATASHEET
