IRIX DVs bulk

X-ray inspection equipment for bulk products

A X-ray inspection system specific for the bulk food industry is available: the IRIX DVS BULK. This equipment has a vertical beam without curtain to inspect unpackaged products. IRIX DVS BULK equipment is used in bulk production lines with products such as legumes, vegetables and nuts, since its robust structure is designed and adapted for the specific environments of this type of product.

Its advanced X-ray technology achieves exceptional detection levels of ferric and non-ferrous material, stainless steel, glass and stones. They also simultaneously verify product damage, breakage, mass measurement with estimated weight, and item count within the product.


This system complies with the international safety standards governing ionizing radiation emissions.

It is listed under the certification of exempt equipment granted by the General Direction of Policies and Mines, with the approval of the Council Of Nuclear Safety Number NHMX224, published in the BOE No. 90 on April 15, 2017.
Technical specifications
ProductionUp to 1200 p/min.
Memory formats
Up to 900 products
Screen
LCD-LED color touch screen 17”
Protection
IP54 / P66 (optional)
Motor
Asynchronous and / or Servo Motor
Working temperature
0-40 ºC
Manufacturing material
Stainless Steel AISI 304 / AISI 316 (optional)

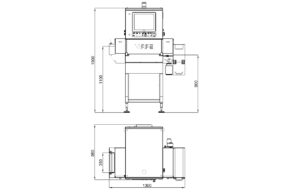

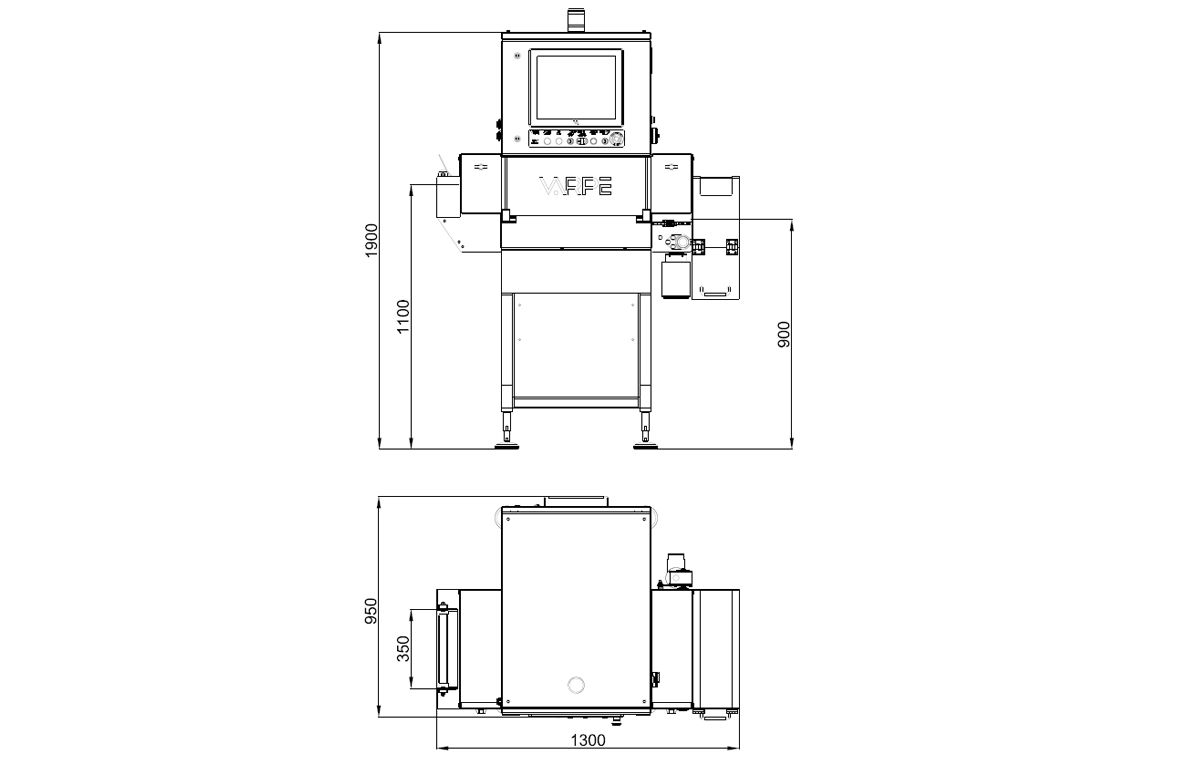

Maximum product dimensions
According to the needs
Working height
800-1200 mm
Resolution
0,8 a 0,4 mm/pix.
Speed
Up to 200 m/min
High-voltage source
Max. 70 kV - Max. 8 mA -
Max. 600 W of high durability
Max. 80 kV - Max. 5 mA -
Max. 600 W of high durability

Included elements
SELF-LEARNING
Product self-learning to optimize production
CONTROL
Full control of all processed products
AUDIT
Audit-trail of settings and configurations
SOFTWARE
Intuitive human-machine interface
USERS
Advanced user control and access with a three-level password
SECURITY
Data integrity
security and automatic backups

REJECTION INFORMATION
Queries, export and analysis of rejections
LANGUAGES
Language
selection

X-RAY GENERATOR
High performance and high durability X-Ray generator
LINEAR ARRAY
Latest generation Linear array
PC
Latest generation PC for high-speed processing
UPS
Uninterruptible Power Supply
Accessories and complements
GUIDES
Adjustable side guides and upper guides
FEEDERS
Magnetic feeders, sidebands, pass-through, sequencers, screw feeders, etc.
AIR CONDITIONING
Air conditioning for extreme temperatures
ALARMS AND BEACONS
Light and / or acoustic beacon and alarms
REJECTION DEVICES
Pushers, blowers, turnouts, tilting, progressive, retractable, etc.
COLLECTION
Rejected product collection system
IP
Degree of protection suitable for harsh environments
SENSORS
Sensors adapted to the product
ADAPTATION
Possibility of different measures in working height, weight zone, conveyors and rejection
TANK
High-definition tank
SCREEN
Articulated arm screen
HYGIENIC DESIGN
Hygienic design based on EHEDG concepts
INCLINED PLANE
Design adapted to inclined lines
Additional elements: Communications, controls and technologies
DIGITAL SIGNALS
Management of digital signals for communication with the line
USB
USB connection port
PROTOCOLS
Communication protocols DATAHUB WEB, MODBUS TCP IP, OPC UA, etc.
CONNECTION
Ethernet
connections

REMOTE CONNECTION
Remote communication for remote maintenance and / or technical support
MAINS VOLTAGE
Electrical voltages adapted to the client at 50/60 Hz
SOFTWARE
Software to improve performance and profitability under request
VIT4
VIT4 software for production data management
ALGORITHMS
Special and customized algorithms (detection of rings, inspection of multipacks)
SPEED
Automatic speed variation
PRODUCTION CONTROL
Control of downtimes, shifts, partials
CONFIRMATION
Confirmation of correct or rejected products (full confirmation), M&S process
ACCUMULATION
Detection system for rejected product accumulation
LIST
Automatic production listing
READER
Manual or automatic barcode, QR and IR reader
VISION
Possibility of adding inspection by vision to complete product information
DUAL ENERGY
Advanced Dual Energy Technology for a more accurate detection
