IRIX DV

X-ray inspection equipment with vertical beam

The new generation of X-ray inspection equipment of Varpe offers innovative global solutions for product inspection with vertical beam, ensuring the safety and integrity of your production.

The vertical beam is the most common and the manufacturer can actually inspect virtually any product with this type of single beam.
Its advanced X ray technology provides an excellent detection of ferric, non-ferric and stainless steel, glass, metal, calcified bones, spines and stones. They also offer simultaneous verification detecting damaged products, breakages, lack of units within the product and mass measurement.

All Varpe X-ray inspection equipment comply with the international safety standards that govern the emission of ionizing radiation.
They are listed under the certification of exempt equipment granted by the General Direction of Policies and Mines, with the approval of the Council of Nuclear Safety number NHMX224, published in the BOE No. 90 on April 15, 2017.

Technical features
Production units / minute
Up to 1200

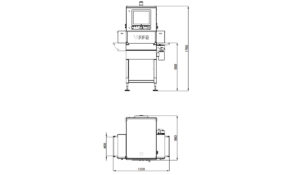

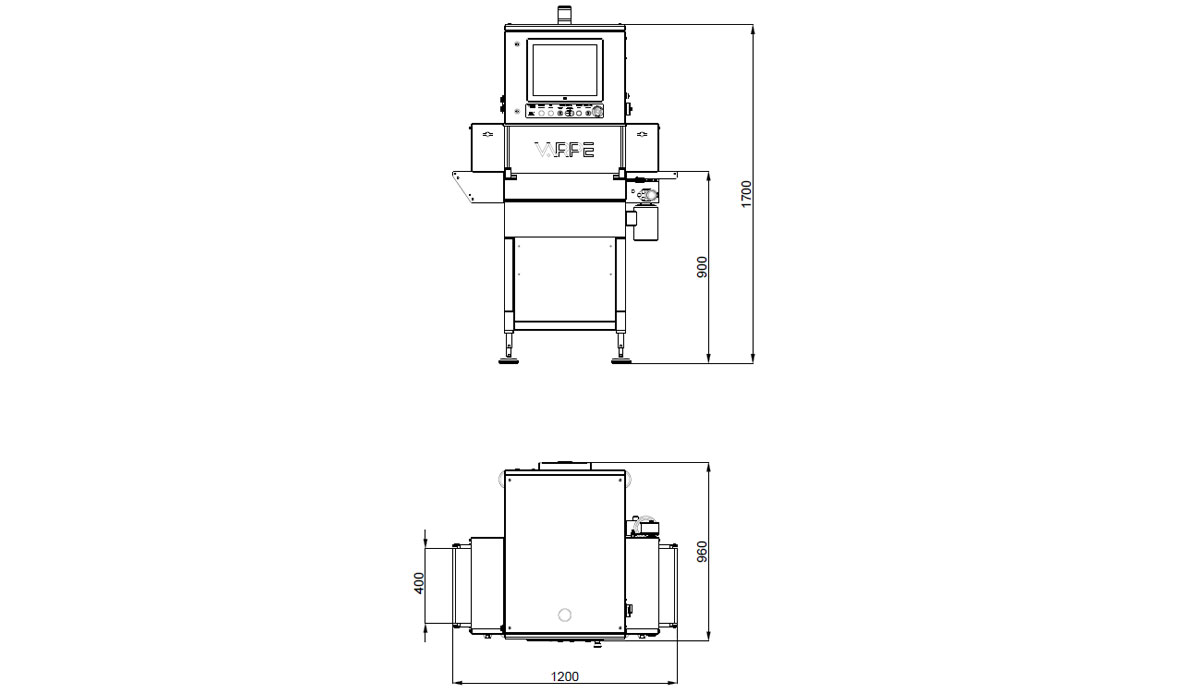

Maximum package size
Unlimited
Minimum package weight
-
Beam technology
Vertical beam
Linear array
High resolution of 0,8 to 0,4 mm per point & high speed scanning up to 200 m/minute
Rejection
-
Voltage
-
Power
-
Speed controller
-
Protection
IP54 as standard protection, with option to IP66 & IP69
Own design inspection software with high precision
Included
Newest generation PC to process at high speeds
Included
MaterialConstruction in stainless steel AISI 304 reinforced to prevent corrosion and prevent radiation leaks
Home made X ray tube and generator highest performance & durability
included
Circuit typeClose cooling circuit to control oil temperature
SourceSource of high voltage of 80 kV 8 mA 300 W (optional 600W) with high performance and durability at low power
Detection level1024 detection levels per pixel


Tecnologies
DUAL ENERGY
Dual Energy Advanced Technology
TDI
TDI Scan Technology
(Time Delay Integration)

SPECIAL ALGORITHMS
Ring detection, multipack inspection, multi-channel and multi-lane
CUSTOMIZED ALGORITHMS
Customized ALGORITHMS according to the product needs
Rejection options
REJECTION DEVICES
Pusher, air blast, deviation flap, drop down
CONFIRMATION
Reject confirmation
LOCKABLE BIN
Lockable reject collection bin
LEVEL
Collection bin level sensor
REJECTION OPTIONS REPORT
 Rejection query, export and analysis
Protection and product handling options
AIR CONDITIONING
Air conditioning for temperatures above 20º
HANDLING OPTIONS
Product handling options (lateral guides, product guides, top and sidebands, rolls)
ALARM
Light &-or sound alarm
PROTECTIONS
Protections against air drafts, avoid access, etc.
Connections & communication options
USB
USB port connector
DATAHUB WEB
Connection for a statistical quality control (SQC)
ETHERNET
Ethernet connections, RS-232 and RS-485
MED
Standard communication protocols to connect MED systems (TCP, MOD BUS, OPC)
Control & adjustment options
AUTO-LEARNING
Product auto-learning
AUTOZERO
Autotrack
FEEDBACK
PID System
DYNAMIC
Dynamic adjustment in production
STOPPAGES
Production stoppages control
CONTROL
Production control
Complements
LISTINGS
Automatic print listings
Adaptations
MULT-LANE
Up to 6 multi-lane inspection channels
AUDITING
Auditing
CONVEYORS
Different conveyors width and length
