IRIX DDL SIDE PLUS

X-ray inspection equipment with double lateral beam

The IRIX DDL SIDE PLUS X-ray inspection system includes advanced X-ray technology that achieves exceptional levels of detection of ferric and non-ferric material, stainless steel, glass, calcified bones, spines and stones.

This equipment includes double side shot, bottom-up or top-down. Bottom-up side beam uses two generators with different angles of attack. It is especially suitable for cans that contain dense products. Top-down side beam is used when inspection is to be performed on glass jars, such as liquid bottles or similar.

In addition, the IRIX DDL SIDE PLUS simultaneously checks for damaged products, breakage, mass measurement with estimated weight, and item count within the product.

This system complies with the international safety standards governing ionizing radiation emissions.

It is listed under the certification of exempt equipment granted by the General Direction of Policies and Mines, with the approval of the Council Of Nuclear Safety Number NHMX224, published in the BOE No. 90 on April 15, 2017.
Technical Specifications
Production Up to 1200 p/min.
Memory formats
Up to 900 products
Screen
LCD-LED color touch screen 17”
Protection
IP54 / P66 (optional)
Motor
Asynchronous and / or Servo Motor
Working temperature
0-40 ºC
Manufacturing material
Stainless Steel AISI 304 / AISI 316 (optional)

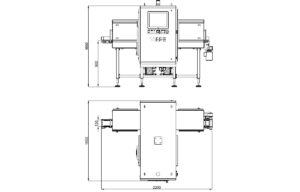

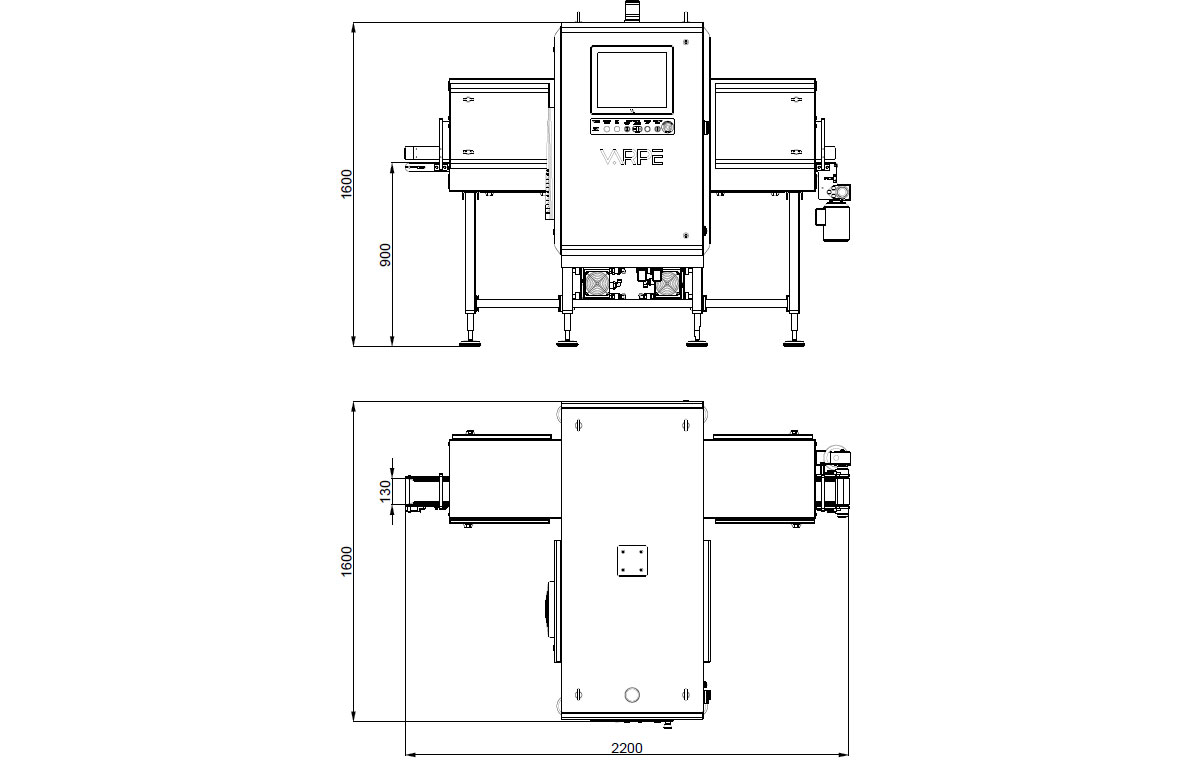

Maximum product dimensions
According to the needs
Working height
800-1200 mm
Resolution
0,8 a 0,4 mm/pix.
Speed
Up to 200 m/min
High-voltage source
Max. 80 kV - Max. 5 mA -
Max. 600 W of high durability

Included elements
SELF-LEARNING
Product self-learning to optimize production
CONTROL
Full control of all processed products
AUDIT
Audit-trail of settings and configurations
SOFTWARE
Intuitive human-machine interface
USERS
Advanced user control and access with a three-level password
SECURITY
Data integrity
security and automatic backups

REJECTION INFORMATION
Queries, export and analysis of rejections
LANGUAGES
Language
selection

X-RAY GENERATOR
High performance and high durability X-Ray generator
LINEAR ARRAY
Latest generation Linear array
PC
Latest generation PC for high-speed processing
UPS
Uninterruptible Power Supply
Accessories and complements
GUIDES
Adjustable side guides and upper guides
FEEDERS
Magnetic feeders, sidebands, pass-through, sequencers, screw feeders, etc.
AIR CONDITIONING
Air conditioning for extreme temperatures
ALARMS AND BEACONS
Light and / or acoustic beacon and alarms
REJECTION DEVICES
Pushers, blowers, turnouts, tilting, progressive, retractable, etc.
COLLECTION
Rejected product collection system
IP
Degree of protection suitable for harsh environments
SENSORS
Sensors adapted to the product
ADAPTATION
Possibility of different measures in working height, weight zone, conveyors and rejection
TANK
High-definition tank
SCREEN
Articulated arm screen
HYGIENIC DESIGN
Hygienic design based on EHEDG concepts
Additional elements: Communications, controls and technologies
DIGITAL SIGNALS
Management of digital signals for communication with the line
USB
USB connection port
PROTOCOLS
Communication protocols DATAHUB WEB, MODBUS TCP IP, OPC UA, etc.
CONNECTION
Ethernet
connections

REMOTE CONNECTION
Remote communication for remote maintenance and / or technical support
MAINS VOLTAGE
Electrical voltages adapted to the client at 50/60 Hz
SOFTWARE
Software to improve performance and profitability under request
VIT4
VIT4 software for production data management
ALGORITHMS
Special and customized algorithms (detection of rings, inspection of multipacks)
SPEED
Automatic speed variation
PRODUCTION CONTROL
Control of downtimes, shifts, partials
CONFIRMATION
Confirmation of correct or rejected products (full confirmation), M&S process
ACCUMULATION
Detection system for rejected product accumulation
LIST
Automatic production listing
READER
Manual or automatic barcode, QR and IR reader
VISION
Possibility of adding inspection by vision to complete product information
