IRIX essentia

Basic X-ray inspection equipment

The range of IRIX X-ray inspection systems created to provide solutions to any type of manufacturer.

Given its competitive price and manageable size, the IRIX ESSENTIA is a new opportunity to continue improving the inspection of products with techniques that guarantee, without a doubt, the safety and health of the final consumer.
It consists on a low consumption and easy installation system, specifically designed for those sectors that, due to the characteristics of their products, require a system with basic functionalities.

  • Detection of contaminants in production lines, such as ferric, non-ferric and stainless steel material, as well as other foreign bodies such as glass, metal, stones, bones and plastics.

  • With more sensitive X ray generator of less power reducing the size of the equipment considerably which makes it easier to incorporate into an already existing production line.

  • In addition to the contamination detection, the new IRIX Basic systems can carry out other functionalities parallel to the detection, such as the measurement of the mass or lack of product to add more value, improving their productivity and the quality of their product.

  • Low energy consumption: High sensitivity detector and an X-ray generator of 120 W up to 60 kV and 2mA.

  • Applications and productivity: It is designed especially for the inspection of small and medium packaged products up to 150 containers per minute.
This food and product inspection equipment are listed under the certification of exempt equipment granted by the General Direction of Policies and Mines, with the approval of the Council Of Nuclear Safety number NHMX224, published in the BOE No. 90 on April 15, 2017.

Technical specifications
ProductionUp to 200 p/min.
Memory formats
Up to 100 products
Screen
LCD-LED color touch screen 17”
Protection
IP54
Motor
Asynchronous
Working temperature
0-40 ºC
Manufacturing material
Stainless Steel AISI 304

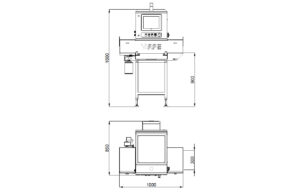

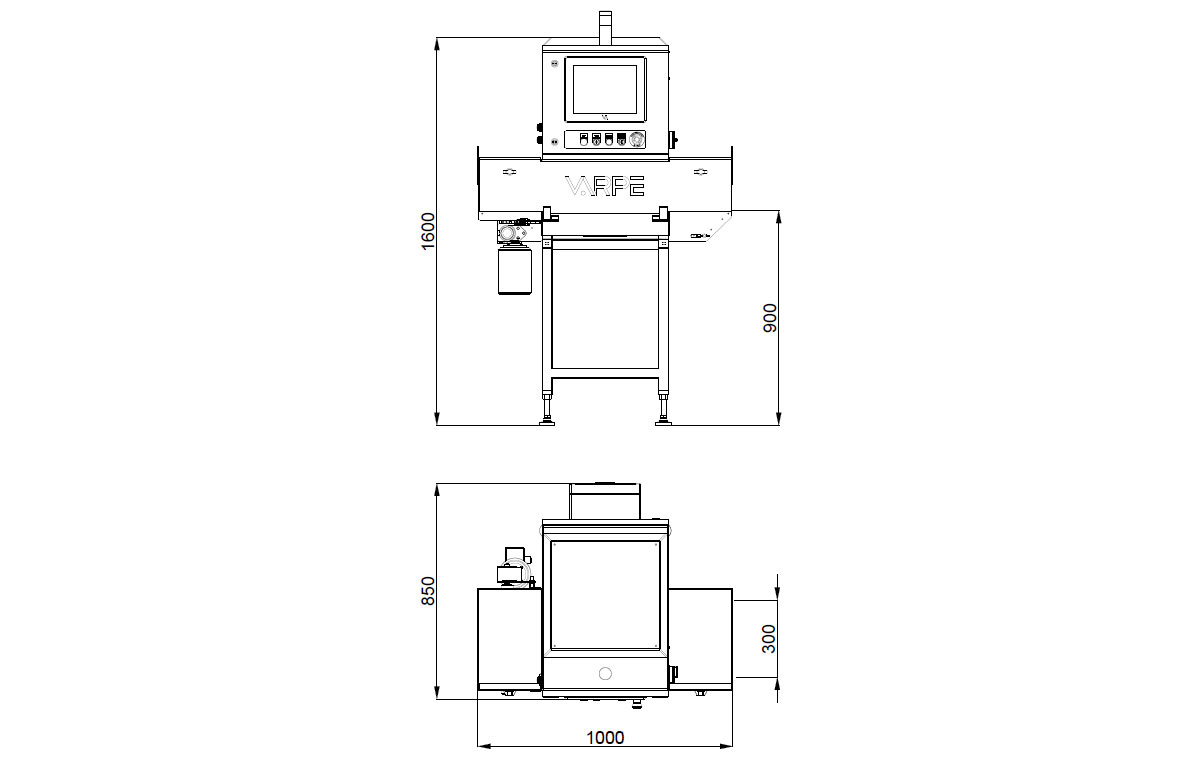

Maximum product dimensions
According to the needs
Working height
800-1200 mm
Resolution
0,8 mm/pix.
Speed
Up to 50 m/min
High-voltage source
Max. 60 kV - Max. 2 mA -
Max. 600 W of high durability

Included elements
SELF-LEARNING
Product self-learning to optimize production
CONTROL
Full control of all processed products
AUDIT
Audit-trail of settings and configurations
SOFTWARE
Intuitive human-machine interface
USERS
Advanced user control and access with a three-level password
SECURITY
Data integrity
security and automatic backups

REJECTION INFORMATION
Queries, export and analysis of rejections
LANGUAGES
Language
selection

X-RAY GENERATOR
High performance and high durability X-Ray generator
LINEAR ARRAY
Latest generation Linear array
PC
Latest generation PC for high-speed processing
Accessories and complements
GUIDES
Adjustable side guides and upper guides
FEEDERS
Magnetic feeders, sidebands, pass-through, sequencers, screw feeders, etc.
AIR CONDITIONING
Air conditioning for extreme temperatures
ALARMS AND BEACONS
Light and / or acoustic beacon and alarms
REJECTION DEVICES
Pushers, blowers, turnouts, tilting, progressive, retractable, etc.
COLLECTION
Rejected product collection system
INCLINED PLANE
Design adapted to inclined lines
SENSORS
Sensors adapted to the product
ADAPTATION
Possibility of different measures in working height, weight zone, conveyors and rejection
UPS
Uninterruptible Power Supply
Additional elements: Communications, controls and technologies
DIGITAL SIGNALS
Management of digital signals for communication with the line
USB
USB connection port
PROTOCOLS
Communication protocols DATAHUB WEB, MODBUS TCP IP, OPC UA, etc.
CONNECTION
Ethernet
connections

REMOTE CONNECTION
Remote communication for remote maintenance and / or technical support
MAINS VOLTAGE
Electrical voltages adapted to the client at 50/60 Hz
READER
Manual or automatic barcode, QR and IR reader
VIT4
VIT4 software for production data management
ALGORITHMS
Special and customized algorithms (detection of rings, inspection of multipacks)
SPEED
Automatic speed variation
PRODUCTION CONTROL
Control of downtimes, shifts, partials
CONFIRMATION
Confirmation of correct or rejected products (full confirmation), M&S process
ACCUMULATION
Detection system for rejected product accumulation
LIST
Automatic production listing
