COMBO RX

Dynamic checkweigher with integrated metal detector

Latest technology in detection of contaminants with X-Ray and checkweighing with centralized management for both functionalities.
Built in with advanced electronic weighing, high accuracy and newest generation software. Robust and stable.
Unbeatable protection of foreign bodies and contam¬inants such as glass, metal, stone, bone and plastic, ensuring the security and integrity on your production.

COMBO RX X-Ray inspection system is listed under the certification of exempt equipment granted by the General Direction of Policies and Mines, with the approval of the Council Of Nuclear Safety number NHMX224, published in the BOE No. 90 on April 15th, 2017.
Technical specifications
Production Up to 1200 p/min.
Precision
From ± 0.1g*
Division unit
From 0.1g
Protection
IP54 / P66 (optional)
Motor
Asynchronous and / or Servo Motor
Working temperature
0-40 ºC
Manufacturing material
Stainless Steel AISI 304 / AISI 316 (optional)

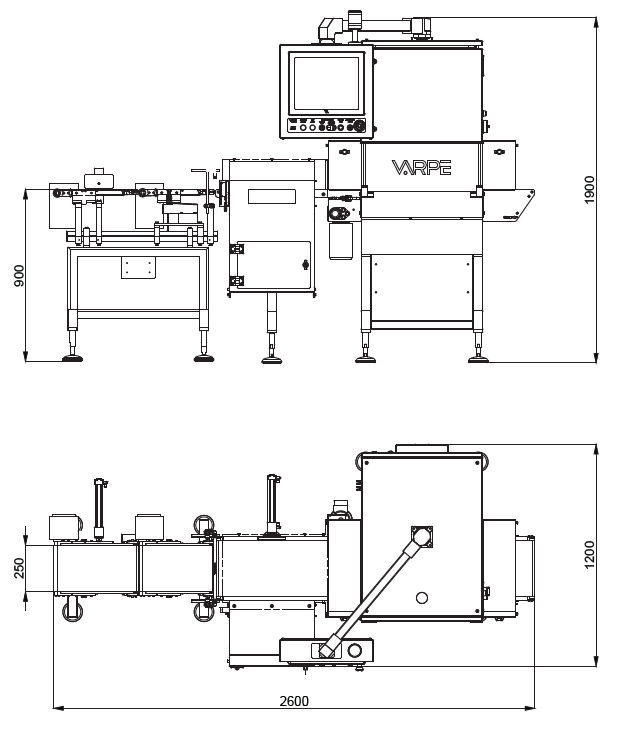

Maximum product dimensions
According to the needs
Working height
800-1200 mm
Resolution
0,8 a 0,4 mm/pix.
Scan speed
Up to 200 m/min
High voltage source
Max. 70 kV - Max. 8 mA -
Max. 600 W of high durability

High voltage source
70 kV and 4mA (300W) high-yield low-yield
Minimum weight to be controlled
From 6g
Memory formats Up to 900 products
Maximum weight to be controlled Up to 5kg
Screen LCD-LED color touch screen 17”
Included elements
ADJUSTMENT
Static and dynamic
adjustment of products

CONTROL
Full control of all processed products
AUDIT
Audit-trail of settings and configurations
SOFTWARE
Intuitive human-machine interface
USERS
Advanced user control and access with a three-level password
SECURITY
Data integrity
security and automatic backups

REJECTION INFORMATION
Queries, export and analysis of rejections
LANGUAGES
Language
selection

X-RAY GENERATOR
High performance and high durability X-Ray generator
LINEAR ARRAY
Latest generation Linear array
PC
Latest generation PC for high-speed processing
UPS
Uninterruptible Power Supply
SELF-LEARNING
Product self-learning to
optimize production
AUTO-ZERO
Lorem ipsum dolor sit amet, consectetur adipisicing elit
DIAGNOSIS
Checking the proper
functioning of the
equipment
UNITS
Selection of units,
according to the
needs
Accessories and complements
GUIDES
Adjustable side guides and upper guides
FEEDERS
Magnetic feeders, sidebands, pass-through, sequencers, screw feeders, etc.
AIR CONDITIONING
Air conditioning for extreme temperatures
ALARMS AND BEACONS
Light and / or acoustic beacon and alarms
REJECTION DEVICES
Pushers, blowers, turnouts, tilting, progressive, retractable, etc.
COLLECTION
Rejected product collection system
IP
Degree of protection suitable for harsh environments
SENSORS
Sensors adapted to the product
ADAPTATION
Possibility of different measures in working height, weight zone, conveyors and rejection
ANTI-VIBRATION
Anti-vibration
reinforcement base

SCREEN
Articulated arm screen
HYGIENIC DESIGN
Hygienic design based on EHEDG concepts
INCLINED PLANE
Design adapted to inclined lines
PROTECTIONS
Fairings against air
currents, accesses,
etc.
ALARMS
AND SIGNS
Light and/or
acoustic signage
and alarms
TAILINGS DEVICES
Pushers, blows,
deviations, tippers,
progressives, retractable,
etc.
DOUBLE
WEIGHING
Possibility
of
double weighing
station
WORKBENCH
Independent bench
Additional elements: Communications, controls and technologies
DIGITAL SIGNALS
Management of digital signals for communication with the line
USB
USB connection port
PROTOCOLS
Communication protocols DATAHUB WEB, MODBUS TCP IP, OPC UA, etc.
CONNECTION
Ethernet
connections

REMOTE CONNECTION
Remote communication for remote maintenance and / or technical support
NETWORK
VOLTAGE

Electrical voltages
adapted to the
customer at 50/60
Hz

SOFTWARE
Software to improve performance and profitability under request
VIT4
VIT4 software for production data management
ALGORITHMS
Special and customized algorithms (detection of rings, inspection of multipacks)
SPEED
Automatic speed variation
PRODUCTION CONTROL
Control of downtimes, shifts, partials
CONFIRMATION
Confirmation of correct or rejected products (full confirmation), M&S process
ACCUMULATION
Detection system for rejected product accumulation
WRISTS
Pulse speed
variation

READER
Manual or automatic barcode, QR and IR reader
VISUAL
Possibility of adding inspection by vision to complete product information
REPORT
Automatic
production report
FEEDBACK
Feedback for
proportional, PID or
moving average dosing
system
